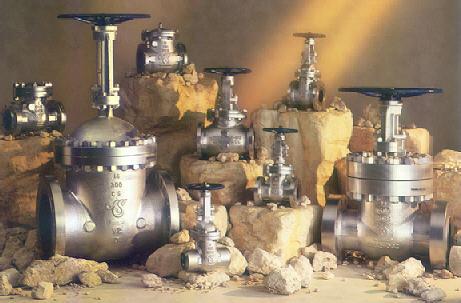

DSI Cast Steel Valves






DSI CAST STEEL VALVES ARE UTILIZED IN PETROLEUM REFINERIES, CHEMICAL PROCESSING PLANTS, POWER GENERATING PLANTS AND OTHER PROCESSING FACILITIES THROUGHOUT THE WORLD. THEY ARE DESIGNED AND MANUFACTURED IN STRICT CONFORMANCE TO API, ASTM, ASME, ANSI AND OTHER RECOGNIZED STANDARDS.

DSI CAST STEEL VALVES ARE NOT ONLY CHARACTERIZED BY OUTSTANDING PERFORMANCE, RELIABILITY AND QUALITY, BUT INCLUDE A LONG LIST OF STANDARD FEATURES NORMALLY OPTIONAL IN OTHER BRANDS. ALL FLANGED DSI CAST STEEL VALVES ARE STANDARD WITH 125-250 RA FLANGE FINISHES, FLEXIBLE GRAPHITE PACKING, A VARIETY OF GASKET MATERIALS AND EXACTING ASSEMBLY AND TESTING PROCEDURES ENSURE COMPLIANCE WITH EVER TIGHTENING EMISSION CONTROL STANDARDS.


CONFIGURATIONS: TRIM MATERIALS:
GATE, GLOBE, SWING CHECK



 STANDARD:  API TRIM NO. 8 (½ HF*)
AVALIABLE: API TRIM NO. 5 (HF*)
BODY MATERIALS:                     API TRIM NO. 12 (316 AND HF*)
ASTM A126 WCB                     API TRIM NO. 11 (MONEL AND HF*)
ASTM A217 WC6                     OTHER MATERIALS ON REQUEST
ASTM A217 C5
ASTM A217 C12 *HARDFACING IS Co-Cr-W DEPOSIT
ASTM A352 LCB
ASTM A352 LCC RANGE:
CLASS 150 2 IN.-36 IN.
CLASS 300 2 IN.-30 IN.
CLASS 600 2 IN.-24 IN.
CLASS 900 2 IN.-8 IN.



SPECIFICATIONS:
API 600 ASME/ANSI B16.34
ASME/ANSI B16.5 ASME B16.10
ASME B16.25 ASME B16.47 SERIES A AND B
NACE HR0175 MSS SP-25
BS 1414 BS 1868
BS 1873
